Messung introduces the XM-PRO 10, a next-generation compact PLC built under the innovative ‘Navonmesh – Make in India’ initiative. This smart controller delivers high performance, affordability and ease of use, making it ideal for a wide range of automation applications. With support for Local and Remote I/O’s modules.
The XM-PRO 10 offers seamless scalability and customization, making it a truly flexible solution for industries worldwide.

XM-14-DT

XM-14DT: COMPACT & EFFICIENT PLC

  • Digital I/Os: 8 DI, 6 DO (Transistor)
  • High-speed processing ideal for machine automation
  • Supports Modbus RTU, Modbus TCP, and MQTT for IIoT
  • Compatible with expansion modules for additional I/Os
  • Ideal for basic machine automation and compact control panels

APPLICATIONS

  • Basic machine automation systems
  • Compact control panels in industrial setups
  • Entry-level automation projects
  • Simple assembly lines and conveyors
  • Small packaging or labeling equipment

XM-17-ADT

XM-17ADT: ENHANCED CONNECTIVITY & ANALOG CONTROL

  • I/O Configuration: 8 DI, 6 DO (Transistor), 2 AI, 1 AO
  • Built-in analog inputs for process control applications
  • Supports Modbus RTU, Modbus TCP, and MQTT for IIoT
  • Compatible with expansion modules for additional I/Os
  • Best suited for automated liquid filling, HVAC, and small process industries

APPLICATIONS

  • Automated liquid filling systems
  • HVAC (Heating, Ventilation, and Air Conditioning) control
  • Small-scale process industries like chemical dosing and food processing
  • Temperature, pressure, and flow-based process control
  • Industrial systems requiring analog signal handling

XM-14DT HIO

ADVANCED HIGH-SPEED PLC WITH EXPANSION CAPABILITY

  • I/O Configuration: 8 DI, 6 DO (Transistor)
  • High-speed counters and PWM output for motion applications
  • Supports Modbus RTU, Modbus TCP, and MQTT for IIoT
  • Compatible with expansion modules for additional I/Os
  • Perfect for testing machines, packaging, and high-speed automation

APPLICATIONS

  • Testing machines requiring precise timing and response
  • High-speed automation systems
  • Packaging machinery with motion control requirements
  • Motion control with high-speed counters and PWM (e.g., printing or textile machines)
  • Synchronization-based applications in industrial automation

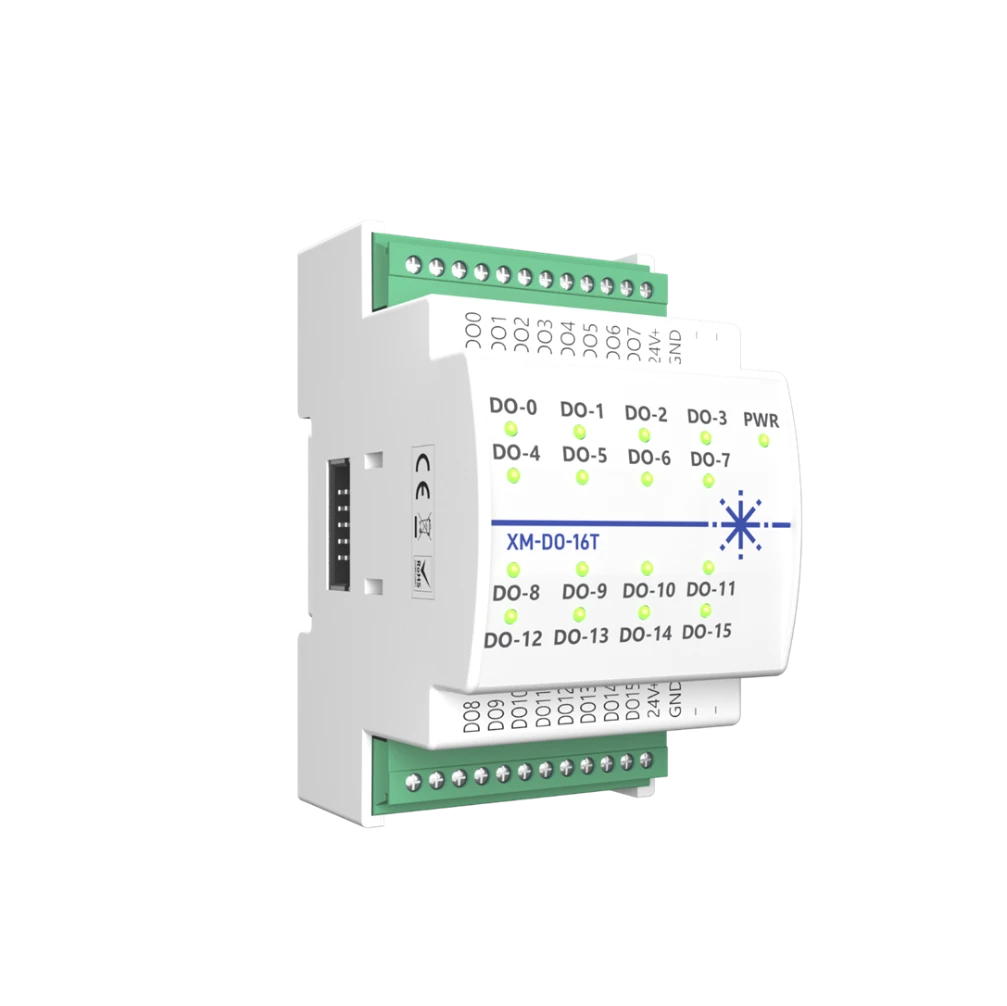

XM-DO-16T

  • Easy expansion by using a plug-in bus connection between the PLC and XM-DO-16T module.
  • Easy fitment next to the PLC on the 35 mm DIN rail.
  • Bus connection routed through an Expansion Connector that also offers protection for cable.
  • 16 solid-state transistor source output to drive external relays.
  • Power supply connection on top as well as bottom for convenience of connection.
  • Convenient stacking of multiple expansion modules with connectors available on both sides of the XM-DO-16T unit.

XM-DI-16

  • Easy expansion by using a plug-in bus connection between the PLC and XM-DI-16 module.
  • Easy fitment next to the PLC on the 35 mm DIN rail.
  • Bus connection routed through an Expansion Connector that also offers protection for cable.
  • 16 optically isolated digital inputs that can accept sink or source logic in 2 groups of 8 inputs.
  • No external power supply required for the XM-DI-16 which is energized from the bus itself.
  • Convenient stacking of multiple expansion modules with connectors available on both sides of the XM-DI-16 unit.

XM-U14-U02

  • Easy expansion by using a plug-in bus connection between the PLC and XM-UI4-UO2 module.
  • Easy fitment next to the PLC on the 35 mm DIN rail.
  • Bus connection routed through an expansion module connector that also offers protection for cable.
  • Powered by an external power supply of 24 VDC.
  • Convenient stacking of multiple expansion modules with connectors available on both sides of the XMUI4-UO2 unit.

XM-AI2-A02

  • The XM-AI2-AO2 is a 2 channel Analog Inputs and 2 channel Analog Outputs Expansion Module that can be installed at right side of XMPro-10 PLC through a BUS connector.
  • This module offers 2 individually configurable voltage or current analog inputs and 2 individually configurable voltage or current analog outputs with easily pluggable wiring terminals.
  • Depending upon the number of Analog I/Os in the application, this module can be selected as an expansion to On-Board IOs of the XMPro-10 series PLC.

XM-DI8-DO6T

  • The XM-DI8-DO6T is an 8 channel Digital Inputs and 6 channel Digital Outputs Expansion Module that can be installed at right side of XMPro-10 PLC through a BUS connector.
  • This module offers opto-isolated sink/source type inputs and transistor source type outputs with easily pluggable wiring terminals.
  • Depending upon the number of Digital I/Os in the application, this module can be selected as an expansion to On-Board IOs of the XMPro-10 series PLC.

XMPS-2000 Software

A Windows-based
utility

User friendly environment for
better experience with software tools

Programming flexibility making it
compatible with varied range of application

Standard Programming Language LADDER

Online diagnostics functionality for runtime status

XMPRO-10 PLC Programming by powerful yet intuitive XMPS 2000 software.

  • CPU & IO Modules Hardware configuration
  • Supports ladder programming languages (LD)
  • Logic Blocks: Subroutines that can be called in Main block
  • Monitor Table: User defined Tags, Communication Variables and Watch window for real-time monitoring of discrete and analog IOs
  • Online monitoring of ladder program and generation of cross references
  • “Force of value” possible during program testing
  • User Library: Custom user-defined function blocks for specific applications
  • User-friendly configuration protocols: MODBUS TCP & RTU
  • Simple IO configuration in software
  • System-generated IO addresses
  • Online hardware diagnostics (CPU, IO, Com ports, etc.)
  • RTC (Real Time Clock) accessible through software
  • Availability of standard data types and instruction sets
  • Upload/Download of user program via Ethernet port
