Messung Industrial Automation

MODBUS

ACCESSORIES

MODBUS

Remote I/O

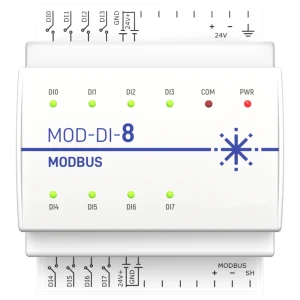

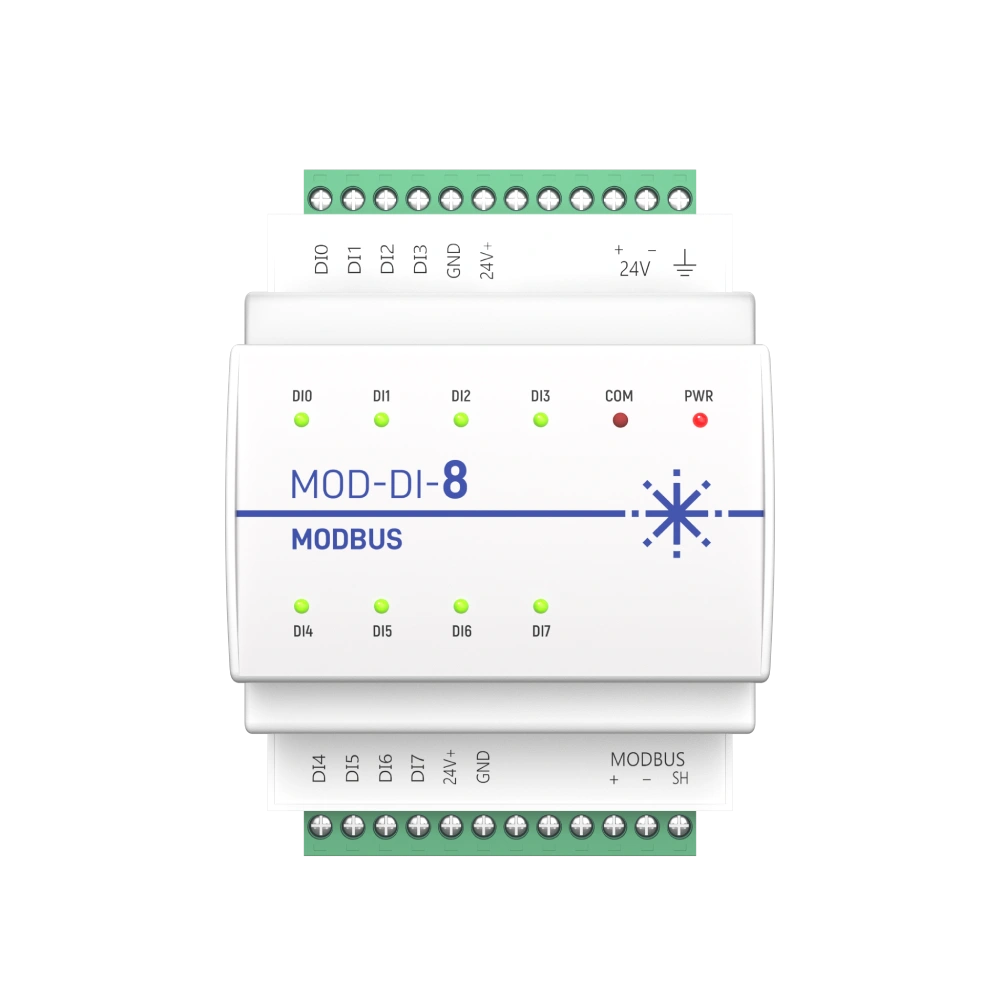

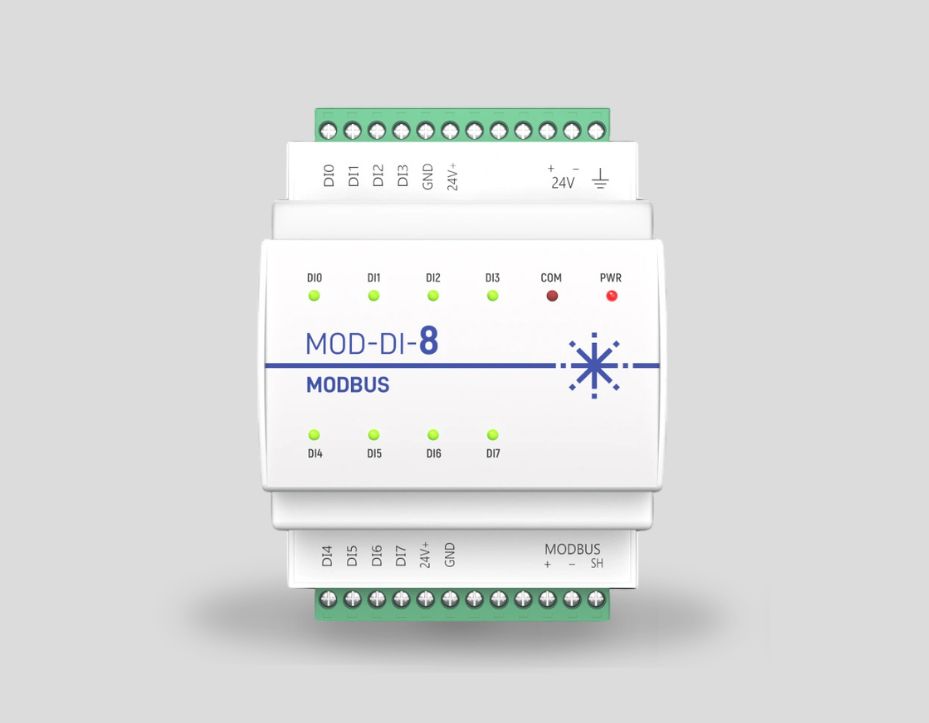

MODBUS-MOD-DI-8

MOD-DI-8

  • 8 Channel Digital Input
  • Two independent groups of 4 inputs each which can be used as a sink or source inputs
  • Isolated inputs
  • LED indication for each input status, communication port and power ON
  • Din rail unit assembly.
  • DIP switch for Modbus configuration
  • No need of any software
  • High Speed Modbus RTU (Slave) communication
  • CE Marking*

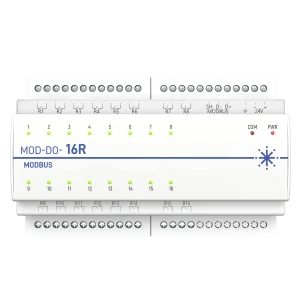

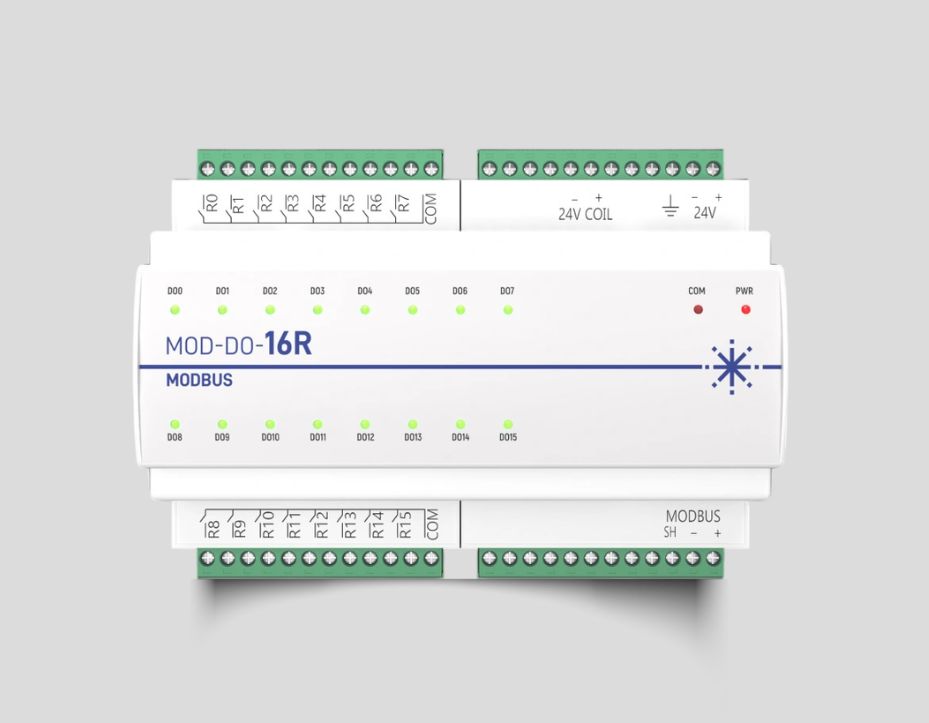

MODBUS-MOD-DO-16R

MOD-DO-16R

  • 16 Channel Relay Output (250VAC-2A/30VDC-2A)
  • Two isolated group of 8 output channel each
  • LED indication for each output status, communication port and power ON
  • DIP switch for Modbus configuration
  • Din rail unit assembly
  • No need of any software
  • High Speed Modbus RTU (Slave) communication
  • CE Marking*
MODBUS-MOD-CFC-4

MOD-CFC-4

  • 4 Channel Ceiling Fan Controller
  • Control up to 5 speed for each channel.
  • Manual output operation with push button
  • Total data saving on bus failure
  • Din rail unit assembly
  • DIP switch for Modbus configuration
  • No need of any software
  • High Speed Modbus RTU (Slave) communication
  • CE marking*

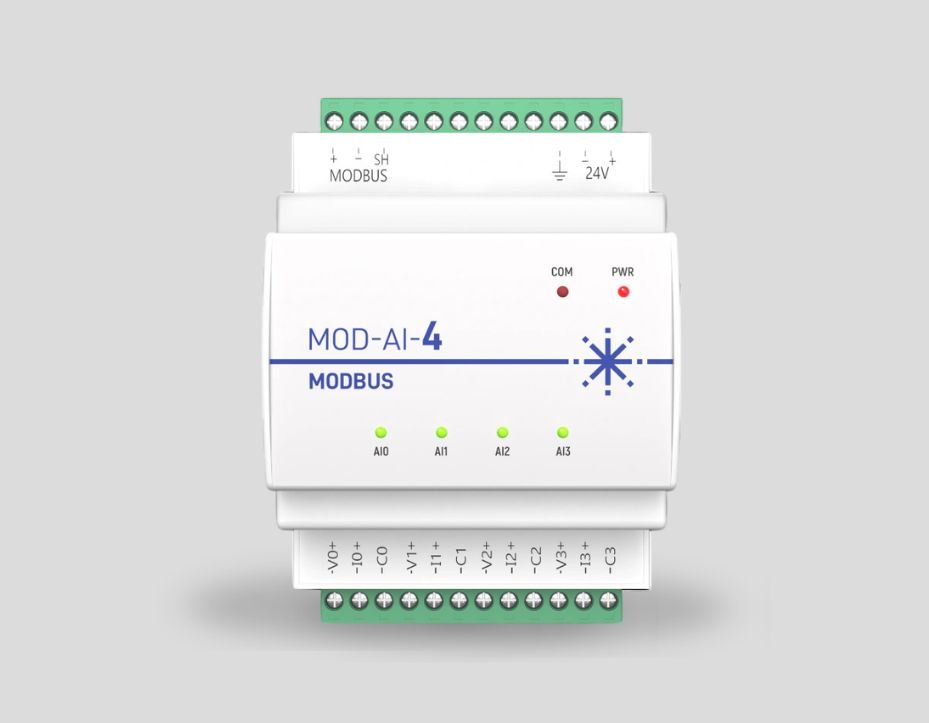

MODBUS-MOD-AI-4

MOD-AI-4

  • 4 Channel Analog input – (12bit- 0-10v/0-20mA/4-20mA)
  • LED indication for each input status,error, communication port and power ON
  • Din rail unit assembly.
  • DIP switch for Modbus configuration
  • No need of any software
  • High Speed Modbus RTU (Slave) communication
  • CE Marking*
Remote I/O MODBUS

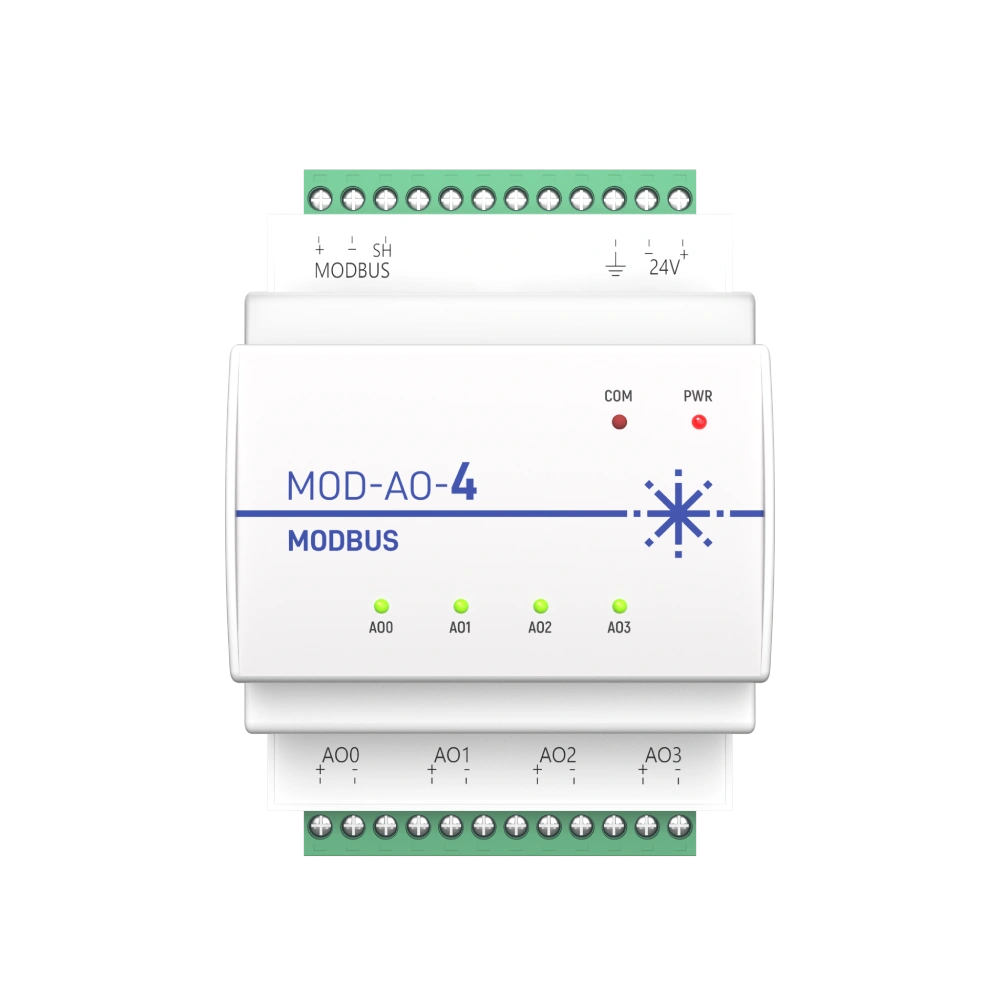

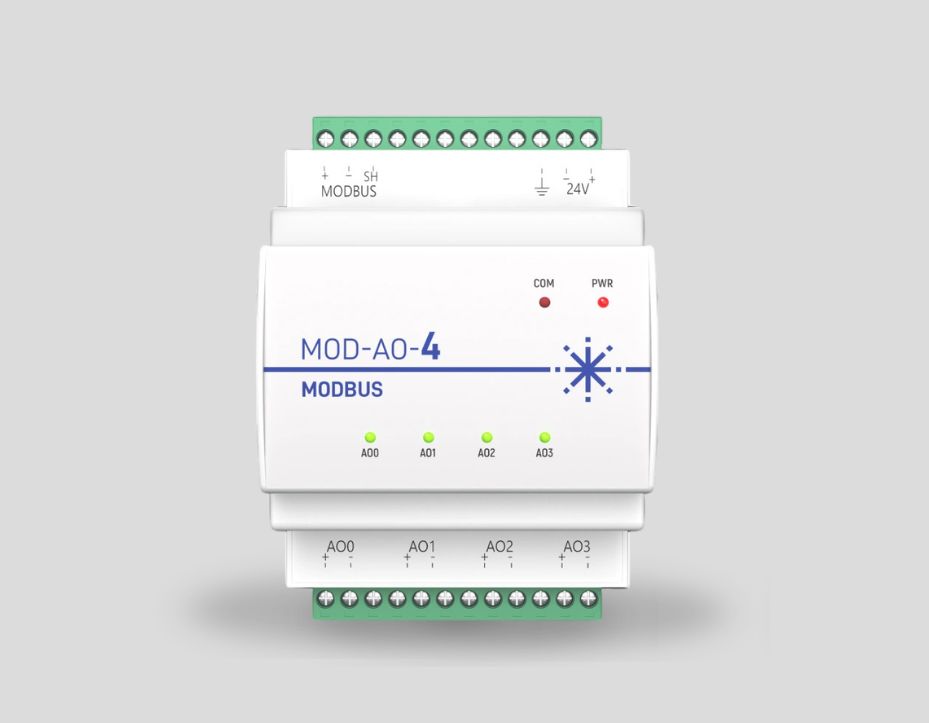

MOD-AO-4

  • 4  ChannelAnalog Output – (12bit- 0-10v/4-20mA)
  • LED indication for each Outputstatus,error, communication port and power ON
  • Din rail mount assembly.
  • DIP switch for Modbus RTU slave configuration
  • No need of any software
  • CE Marking*
MODbus

MOD-DIM-2P

  • 2 channel phase cut dimmer for incandescent and LED Lamps
  • Manual output operation with push button and LED status indicator
  • LED indication for power and communication status
  • DIP switch for Modbus configuration
  • DIN rail mount assembly
  • No need of anysoftware
  • High speed Modbus RTU (Slave) communication
  • CE Marking*

MOD-DI-8

  • 8 Channel Digital Input
  • Two independent groups of 4 inputs each which can be used as a sink or source inputs
  • Isolated inputs
  • LED indication for each input status, communication port and power ON
  • Din rail unit assembly.
  • DIP switch for Modbus configuration
  • No need of any software
  • High Speed Modbus RTU (Slave) communication
  • CE Marking*

MOD-DO-16R

  • 16 Channel Relay Output (250VAC-2A/30VDC-2A)
  • Two isolated group of 8 output channel each
  • LED indication for each output status, communication port and power ON
  • DIP switch for Modbus configuration
  • Din rail unit assembly
  • No need of any software
  • High Speed Modbus RTU (Slave) communication
  • CE Marking*

MOD-AI-4

  • 4 Channel Analog input – (12bit- 0-10v/0-20mA/4-20mA)
  • LED indication for each input status,error, communication port and power ON
  • Din rail unit assembly.
  • DIP switch for Modbus configuration
  • No need of any software
  • High Speed Modbus RTU (Slave) communication
  • CE Marking*

MOD-AO-4

  • 4  ChannelAnalog Output – (12bit- 0-10v/4-20mA)
  • LED indication for each Outputstatus,error, communication port and power ON
  • Din rail mount assembly.
  • DIP switch for Modbus RTU slave configuration
  • No need of any software
  • CE Marking*
