Messung presents XM-PRO Series, indigenously designed and manufactured by Messung under its ‘Navonmesh’ Make in India initiative. The Series includes a wide range of Remote I/O modules which are CE marked and certified for usage in harsh industrial environments.

Modern Automation products are now able to connect to external devices via various protocols, for example, Modbus, Canopen, Ethernet IP, DeviceNet, etc. Messung offers a range of Remote I/O modules especially for Modbus, CANopen and Messung’s own “Mesbus”.

Remote I/O modules enable users to greatly increase the capacity of the automation solutions enabling connections to electro mechanical actuators, sensors, VFDs and Servomotors, which are placed far away from the main control Cabinet.

CAN-AI4

  • CANopen Slave
  • Conforms to CiA Draft Standards DS301 – Version 4.0 and DS401 Version 2.0
  • Node guarding, Lifeguarding, Heartbeat
  • 4 Channel Analog Input channels – (12bit- 0-10v/0-20mA).
  • LED indication for communication and power
  • DIN rail mount assembly
  • Dimension-87.7(L) x 90.2(W) x 32(D) mm.
  • DIP switch for CANopen slave configuration
  • No configuration software needed
  • CE Mark*

CAN-AO4

  • CANopen Slave
  • Conforms to CiA Draft Standards DS301 – Version 4.0 and DS401 Version 2.0
  • Node guarding, Lifeguarding, Heartbeat
  • 4 Channel Analog Output channels – (0-10v/0-20mA).
  • LED indication for communication and power
  • DIN rail mount assembly
  • Dimension-87.7(L) x 90.2(W) x 32(D) mm.
  • DIP switch for CANopen slave configuration
  • No configuration software needed
  • CE Mark*

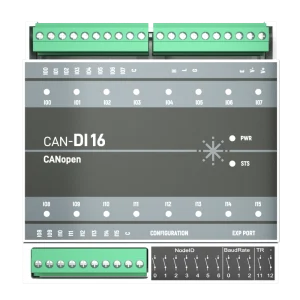

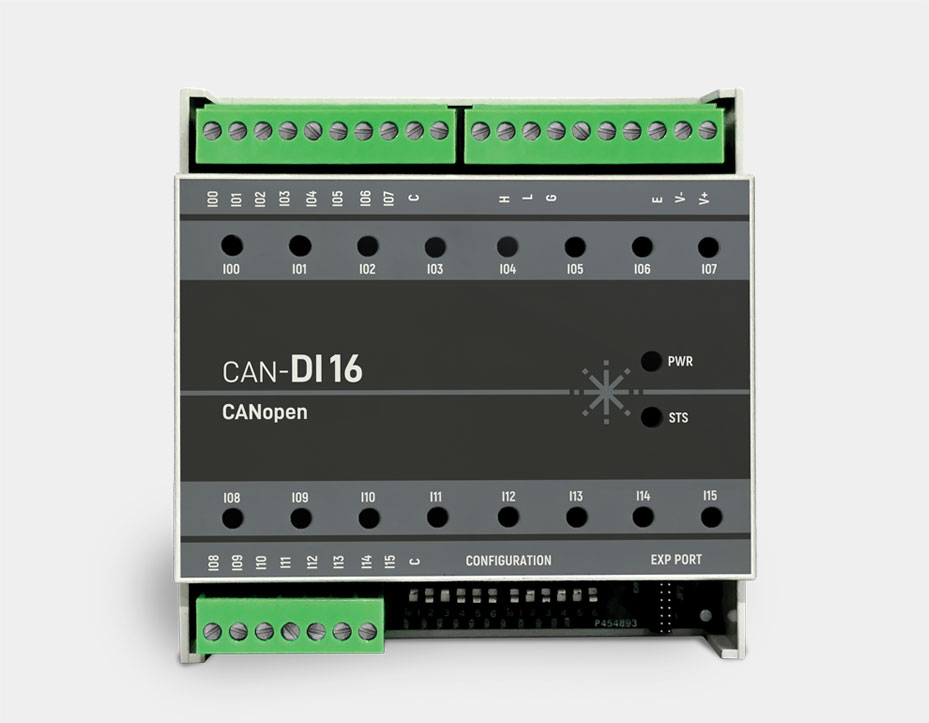

CAN-DI 16

  • 16 Channel digital Input (2 groups of 8 channel  Sink/Source)
  • CANopen Slave
  • Conforms to CiA Draft Standards DS301 – Version  4.0 and DS401 Version 2.0
  • Nodeguarding, Lifeguarding, Heartbeat
  • Isolated between logic and inputs
  • LED indication for each input status,  communication and power
  • DIN rail mount assembly
  • DIP switch for CANopen slave configuration
  • No configuration software needed
  • CE Mark*
XM Pro Series CanOpen

CAN-DO 16T

  • CANopen Slave
  • Conforms to CiA Draft Standards DS301 – Version 4.0 and DS401 Version2.0
  • Nodeguarding, Lifeguarding, Heartbeat
  • 16 Channel digital output channels (24VDC) (2 groups of 8 channel)
  • Isolated between logic and outputs
  • LED indication for each output status, communication and power
  • DIN rail mount assembly
  • Dimension – 87.7(L) x 90.2(W) x 32(D) mm.
  • DIP switch for CANopen slave configuration
  • No configuration software needed
  • CEMark*

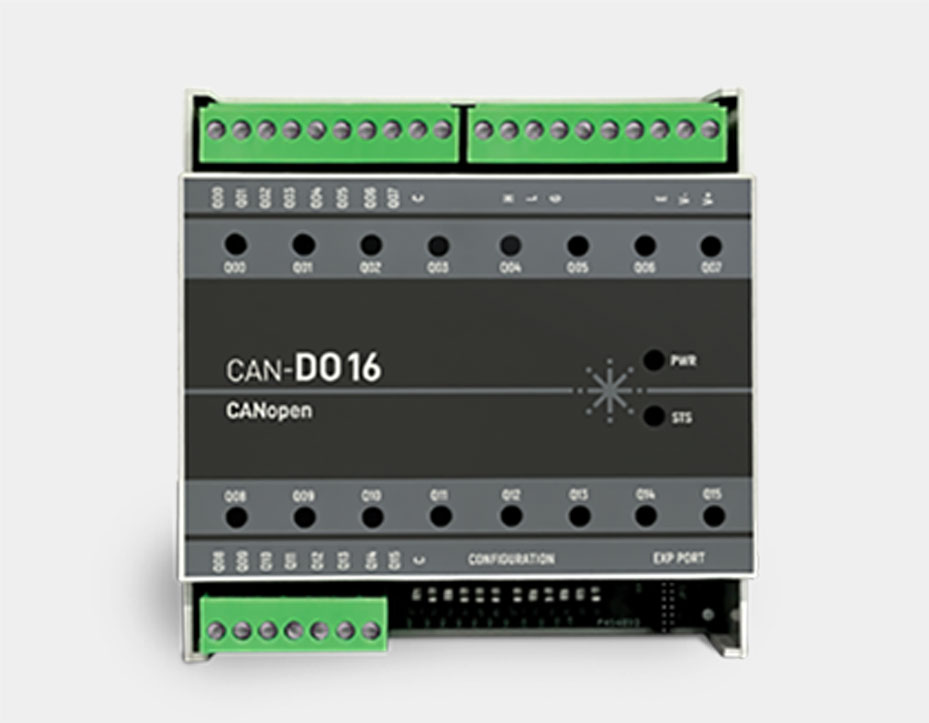

CAN-DO 16

  • 16 Channel digital output channels (relay)  (2 groups of 8 channel)
  • CANopen Slave
  • Conforms to CiA Draft Standards DS301 – Version  4.0 and DS401 Version 2.0
  • Nodeguarding, Lifeguarding, Heartbeat
  • Isolated between logic and outputs
  • LED indication for each outputs status,  communication and power
  • DIN rail mount assembly
  • DIP switch for CANopen slave configuration
  • No configuration software needed
  • CE Mark*
CAN-DI8-DO6-canopen

CAN-DI 8-DO6

  • 8 Channel digital input (Sink/Source) & 6 Channel  relay output
  • CANopen Slave
  • Conforms to CiA Draft Standards DS301 – Version  4.0 and DS401 Version 2.0
  • Nodeguarding, Lifeguarding, Heartbeat
  • Isolated between logic and Inputs/output
  • LED indication for each input/output status,  communication and power
  • DIN rail mount assembly
  • DIP switch for CANopen slave configuration
  • No configuration software needed
  • CE Mark*
